Sample permit drawings
Architectural Documents, custom home plans, exterior wall section, door and window elevations

Wall Sections and Opening Types

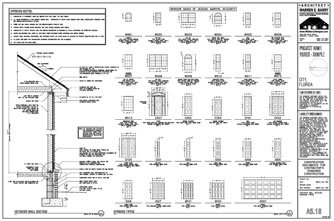

Wall Sections are drawings that cut through a particular wall of the project in order to illustrate and describe the materials that make up the building.  Opening Type Elevations include an elevation view of each type of interior and exterior door and window.  Opening Type Elevations are very beneficial for projects which incorporate interior doors and windows that may utilize transoms, side lights, special stile and rail designs, or other design considerations which cannot be represented on the floor plan.
